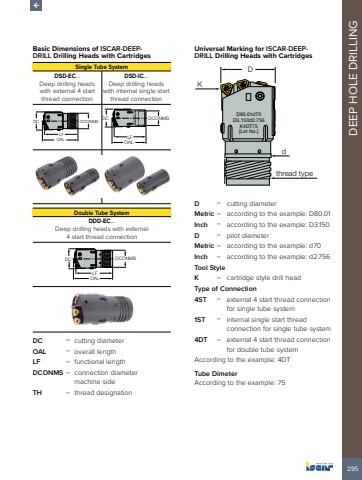

295DEEP HOLE DRILLINGBasic Dimensions of ISCAR-DEEPDRILL Drilling Heads with CartridgesSingle Tube SystemDSD-EC%u2026Deep drilling heads with external 4 start thread connectionDSD-IC%u2026Deep drilling heads with internal single start thread connection38.00 - 106.99LFOALDC DCONMS DCLFDCONMSOALDouble Tube SystemDDD-EC%u2026Deep drilling heads with external 4 start thread connectionLFOALDC DCONMSDC %u2013 cutting diameterOAL %u2013 overall lengthLF %u2013 functional lengthDCONMS %u2013 connection diameter machine sideTH %u2013 thread designationUniversal Marking for ISCAR-DEEPDRILL Drilling Heads with CartridgesD80.01d70D3.150d2.756K4DT75[Lot No.]DKdthread typeD %u2013 cutting diameterMetric %u2013 according to the example: D80.01Inch %u2013 according to the example: D3.150D %u2013 pilot diameterMetric %u2013 according to the example: d70Inch %u2013 according to the example: d2.756Tool StyleK %u2013 cartridge style drill headType of Connection4ST %u2013 external 4 start thread connection for single tube system1ST %u2013 internal single start thread connection for single tube system4DT %u2013 external 4 start thread connection for double tube systemAccording to the example: 4DTTube DimeterAccording to the example: 75
