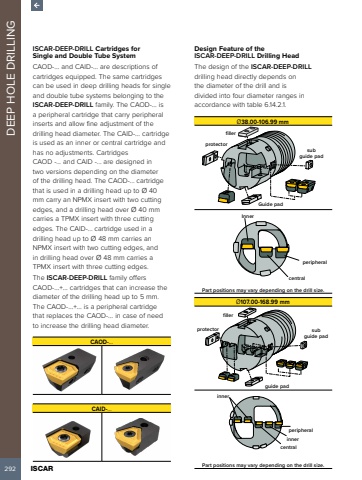

292 ISCAR DEEP HOLE DRILLINGISCAR-DEEP-DRILL Cartridges for Single and Double Tube SystemCAOD-%u2026 and CAID-%u2026 are descriptions of cartridges equipped. The same cartridges can be used in deep drilling heads for single and double tube systems belonging to the ISCAR-DEEP-DRILL family. The CAOD-%u2026 is a peripheral cartridge that carry peripheral inserts and allow fine adjustment of the drilling head diameter. The CAID-%u2026 cartridge is used as an inner or central cartridge and has no adjustments. Cartridges CAOD -... and CAID -... are designed in two versions depending on the diameter of the drilling head. The CAOD-... cartridge that is used in a drilling head up to %u00d8 40 mm carry an NPMX insert with two cutting edges, and a drilling head over %u00d8 40 mm carries a TPMX insert with three cutting edges. The CAID-... cartridge used in a drilling head up to %u00d8 48 mm carries an NPMX insert with two cutting edges, and in drilling head over %u00d8 48 mm carries a TPMX insert with three cutting edges.The ISCAR-DEEP-DRILL family offers CAOD-%u2026+%u2026 cartridges that can increase the diameter of the drilling head up to 5 mm. The CAOD-%u2026+%u2026 is a peripheral cartridge that replaces the CAOD-%u2026 in case of need to increase the drilling head diameter.CAOD-%u2026CAID-%u2026Design Feature of the ISCAR-DEEP-DRILL Drilling HeadThe design of the ISCAR-DEEP-DRILLdrilling head directly depends on the diameter of the drill and is divided into four diameter ranges in accordance with table 6.14.2.1.%u00d838.00-106.99 mmGuide padfillersub guide padprotectorperipheralcentralInnerPart positions may vary depending on the drill size.%u00d8107.00-168.99 mmguide padfillerprotector sub guide padperipheralinnerinnercentralPart positions may vary depending on the drill size.
