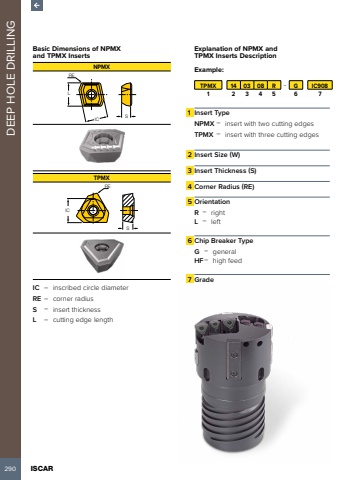

290 ISCAR DEEP HOLE DRILLINGBasic Dimensions of NPMX and TPMX InsertsNPMXICLRESTPMXICSRERGIC %u2013 inscribed circle diameterRE %u2013 corner radiusS %u2013 insert thicknessL %u2013 cutting edge lengthExplanation of NPMX and TPMX Inserts DescriptionExample:TPMX 14 03 08 R %u2013 G IC9081 2 3 4 5 6 71 Insert TypeNPMX %u2013 insert with two cutting edgesTPMX %u2013 insert with three cutting edges2 Insert Size (W)3 Insert Thickness (S)4 Corner Radius (RE)5 OrientationR %u2013 rightL %u2013 left6 Chip Breaker TypeG %u2013 generalHF%u2013 high feed7 Grade
