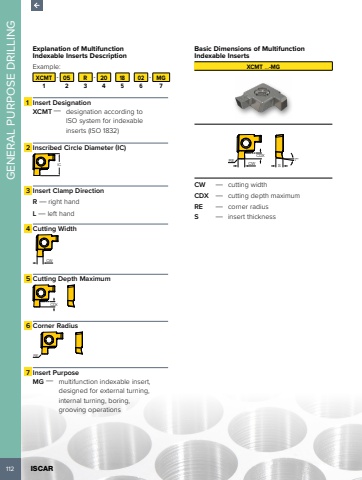

112 ISCAR GENERAL PURPOSE DRILLINGExplanation of Multifunction Indexable Inserts Description Example:XCMT - 05 R - 20 18 02 - MG1 2 3 4 5 6 71 Insert DesignationXCMT %u2014 designation according to ISO system for indexable inserts (ISO 1832)2 Inscribed Circle Diameter (IC) IC3 Insert Clamp DirectionR %u2014 right handL %u2014 left hand4 Cutting Width CW5 Cutting Depth Maximum CDX6 Corner Radius RE7 Insert PurposeMG %u2014 multifunction indexable insert, designed for external turning, internal turning, boring, grooving operations Basic Dimensions of Multifunction Indexable InsertsXCMT %u2026-MGCDX7%u00b0S CWRECW %u2014 cutting widthCDX %u2014 cutting depth maximumRE %u2014 corner radiusS %u2014 insert thickness
