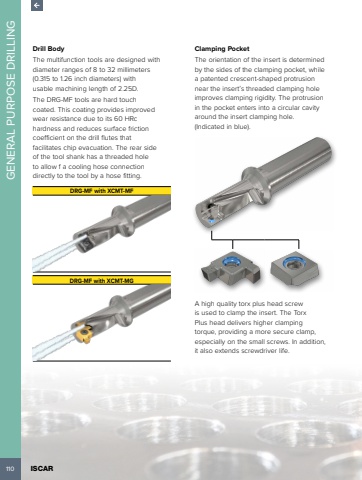

110 ISCAR GENERAL PURPOSE DRILLINGDrill BodyThe multifunction tools are designed with diameter ranges of 8 to 32 millimeters (0.315 to 1.26 inch diameters) with usable machining length of 2.25D. The DRG-MF tools are hard touch coated. This coating provides improved wear resistance due to its 60 HRc hardness and reduces surface friction coefficient on the drill flutes that facilitates chip evacuation. The rear side of the tool shank has a threaded hole to allow f a cooling hose connection directly to the tool by a hose fitting. DRG-MF with XCMT-MFDRG-MF with XCMT-MGClamping PocketThe orientation of the insert is determined by the sides of the clamping pocket, while a patented crescent-shaped protrusion near the insert%u2019s threaded clamping hole improves clamping rigidity. The protrusion in the pocket enters into a circular cavity around the insert clamping hole. (Indicated in blue).A high quality torx plus head screw is used to clamp the insert. The Torx Plus head delivers higher clamping torque, providing a more secure clamp, especially on the small screws. In addition, it also extends screwdriver life.
