Heavy Machining
HEAVY

ving - T
t R
es
oo
r
epor

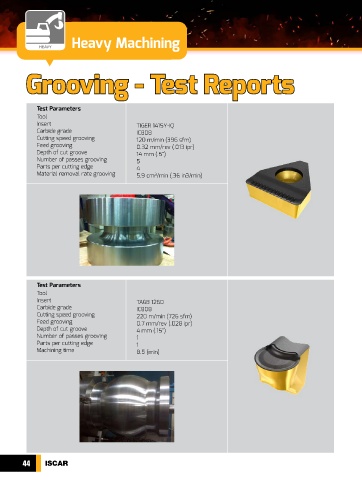

G Grooving - Test Reports
ts
Test Parameters
Tool
Insert TIGER 1415Y-IQ
Carbide grade IC808
Cutting speed grooving 120 m/min (396 sfm)
Feed grooving 0.32 mm/rev (.013 ipr)
Depth of cut groove 14 mm (.5”)
Number of passes grooving 5
Parts per cutting edge 4
Material removal rate grooving 5.9 cm /min (.36 in3/min)
3

Test Parameters
Tool
Insert TAGB 1260
Carbide grade IC808
Cutting speed grooving 220 m/min (726 sfm)
Feed grooving 0.7 mm/rev (.028 ipr)
Depth of cut groove 4 mm (.15”)
Number of passes grooving 1
Parts per cutting edge 1
Machining time 8.5 (min)

44 ISCAR
