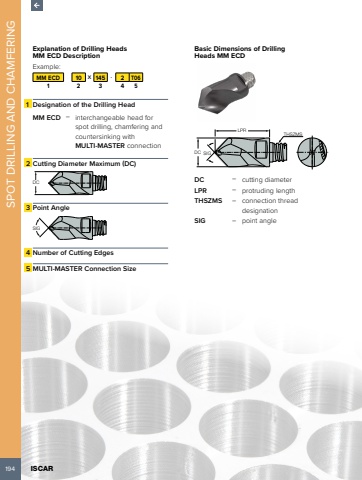

194 ISCAR SPOT DRILLING AND CHAMFERINGExplanation of Drilling Heads MM ECD Description Example:MM ECD 10 X 145 - 2 T061 2 3 4 51 Designation of the Drilling HeadMM ECD %u2013 interchangeable head for spot drilling, chamfering and countersinking with MULTI-MASTER connection2 Cutting Diameter Maximum (DC)DC3 Point AngleSIG4 Number of Cutting Edges5 MULTI-MASTER Connection SizeBasic Dimensions of Drilling Heads MM ECDDC SIGLPRTHSZMSDC %u2013 cutting diameterLPR %u2013 protruding lengthTHSZMS %u2013 connection thread designationSIG %u2013 point angle
